MIXERS
> > Plough
Shear Mixer |
|
|
| |
| |
| Raj
plough shear mixer is a horizontal
mixer with cylindrical drum and horizontally
installed mixing shaft. The mixer
is designed for heavy duty blending
of both dry and wet material. Plough
shape shovels mounted on a central
shaft with its sharp ends easily penetrate
through the dense powder and thick
pasty mass. Extra shear can be attained
by adding side mounted choppers. |
| |
| Design features
of plough shear mixer : |
| |
| a)
|
Hygienic
design. |
| b) |
Custom
built to suit product specific
requirements. |
| c) |
Teflon
coated internals for food and
sticky material applications.
|
| d) |
Wear resistant plates for abrasive
products. |
| e) |
Jacketed
construction for heating or cooling
applications. |
| f) |
Can be operated under vacuum.
|
|
| |
| Typical
applications include homogenous mixing
of pastes, rubber, heavy plastic mass,
food, pharmaceutical, chemicals etc.
RAJ Plough Shear
mixer is a horizontal mixing system
with horizontal, cylindrical drum
and horizontally installed mixing
shaft .
RAJ Plough Shear
Mixer is designed for heavy duty blending
of both dry and wet materials. Plough
shape shovels mounted on a central
shaft with its pointed ends are easily
penetrable through the dense powder,
pasty mass.
The overlapping of
shovels coupled with its shape and
the high speed of the ploughs produces
good mixing action and high turbulence. |
|
|
|
|
| |
|
The arrangement of mixing tools
is the result of many years of development by
RAJ process equipments combined with experience
based on mixing trials and practical scientific
work.
RAJ Plough Mixers are high energy,
high shear, and high-speed mixers with cylindrical
short aspect ratio mixing chambers. Extra shear
can be achieved by adding side cutters or intensifiers.
The use of high speed choppers further reduce
the product particle size thus resulting in a
better mix.
RAJ Plough Mixers are available
with 'Easy Clean' cantilevered shaft, subject
to application. |
| |
| Applications |
| |
 |
Quick
and homogenous mixing of pastes, rubber, and
heavy plastic masses. |
|
Bulk Powder
in dry / dry solids, dry / wet paste, and
wet-wet mass. |
|
Applications
in Food, Pharmaceutical and Chemical industries. |
|
Solid
Solid Mixing. |
|
Solid
Liquid Mixing. |
|
Homogenizing.
|
|
Blending.
|
|
Granulation. |
|
Multiple
Phase |
|
Reactions. |
|
Drying. |
|
| |
| Features |
| |
|
Hygienic
design. |
|
Available in
working capacities of few Liters to few thousand
Liters. |
|
Custom built
to suit customer requirements. |
|
Available
in Stainless Steel and all grades of Carbon
Steel. |
|
Optional
Teflon Coated Internals for Food and Sticky
material applications. |
|
Alternative
trough shapes are available to suit specific
application requirements. |
|
Optional
wear resistant liner plates provided for abrasive
products. |
|
Jacketed
construction available for steam and cooling
applications. |
|
Can
be offered for vacuum application. |
|
Rapid
mix times. |
|
High-energy
mixes. |
|
| |
| Choppers |
| |
| Choppers
are working in conjunction with the shovels, intensify
the mixing process. They are used for dispersing
lumps which are either in the original product
or which forms during process, they chop pasty
additives or prevent the formation of agglomeration
when liquid is introduced to the mix. |
| |
| |
| |

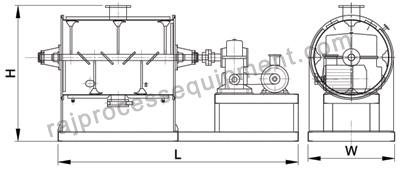

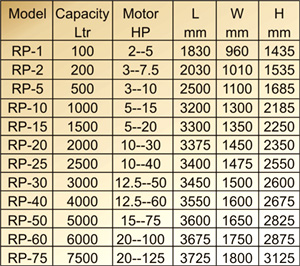

| RAJ
Plough Shear Mixer Models |
| |
| |
| |
|
| |
